The NS LCD PF1 series, featuring true Online Double Conversion (VFI) technology, ensures a continuous, stable, and regulated pure sine-wave AC supply for mission-critical applications. With a unitary Power Factor (PF 1), the active power (W) fully matches the apparent power (VA), delivering superior performance and energy efficiency for demanding industrial and IT infrastructures.

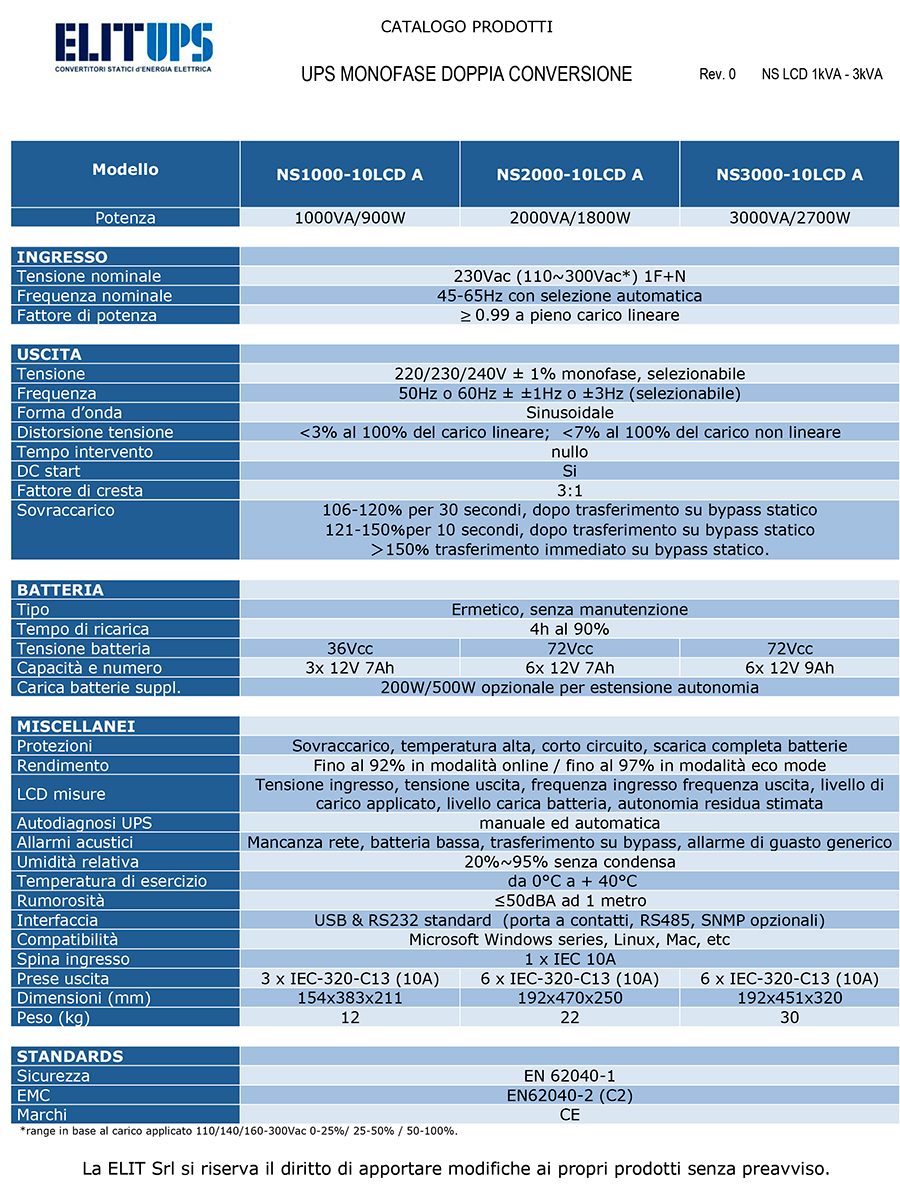

SINGLE PHASE ONLINE DOUBLE CONVERSION SINEWAVE UPS 1000VA – 3000VA, NS LCD SERIES
Description

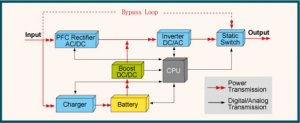

Normal Mode: Under standard utility conditions, the load is directly fed via the Inverter, while the Rectifier maintains battery charge and supplies the
necessary power to the output stage.
Battery Mode: Should a blackout, phase loss, or voltage fluctuation occur, the battery powers the Inverter with zero transfer time, ensuring uninterrupted operation for critical equipment.
Automatic Bypass: In the event of an overload, internal fault, or overtemperature, the load is instantly transferred to the emergency line (Static Bypass) and automatically reverts to the Inverter once nominal conditions are restored .

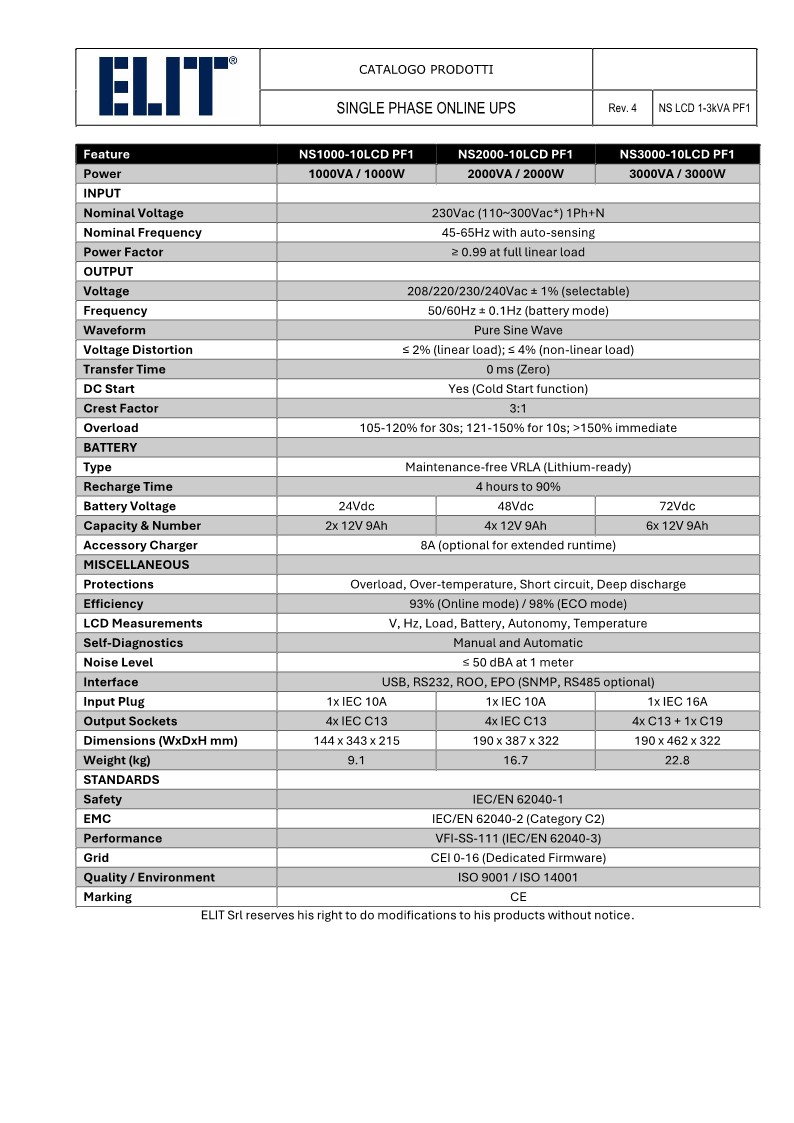

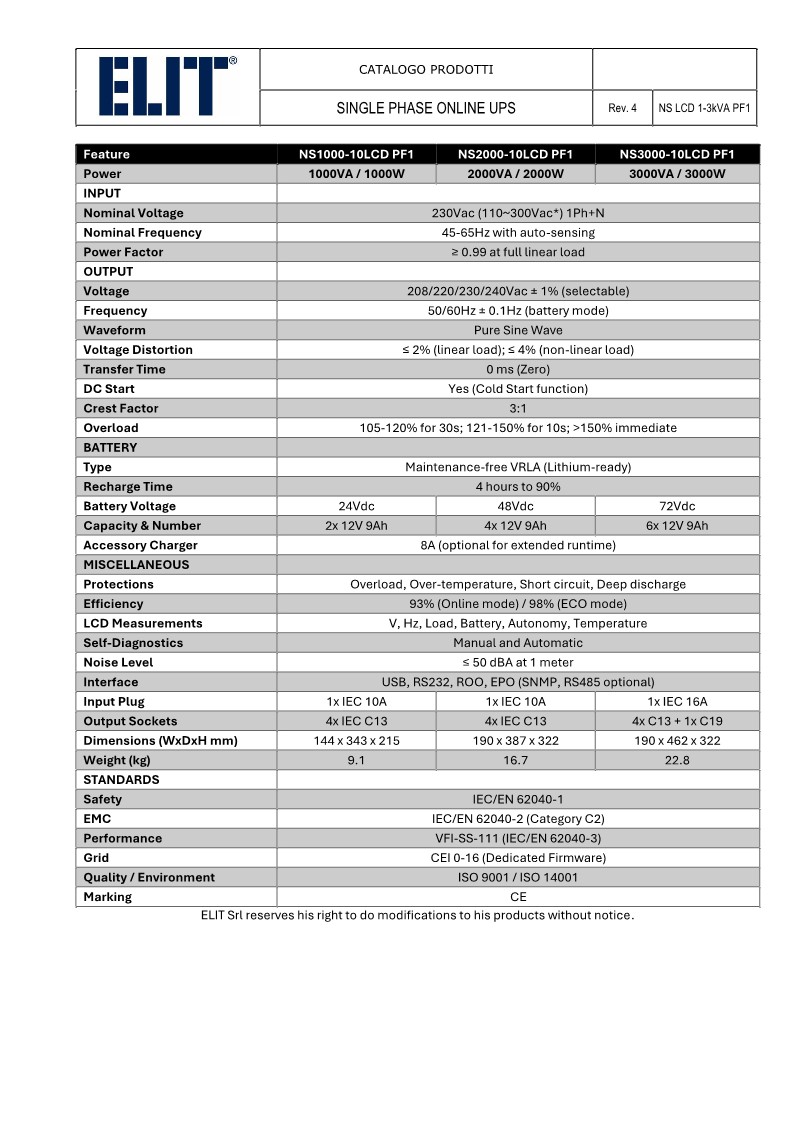

- True Online Double Conversion technology (VFI-SS-111).
- Unitary output Power Factor (PF 1.0).
- Lithium-ion battery compatible (Lithium-ready).
- Full-time Digital Signal Processor (DSP) control technology.
- Filtered, stabilized, and pure sine-wave output.
- Active Input Power Factor Correction (THDi < 5%).
- Wide input voltage window (110V-300V) to preserve battery health.
- Zero transfer time for total load protection.
- Cold start function and programmable auto restart on mains return.
- Premium efficiency: up to 93% in Online mode and 98% in ECO mode.
- Scalable runtime via matching battery cabinets (8A supercharger available).
- Smart battery management with automatic and manual diagnostic testing.
- User-friendly LCD for status monitoring and estimated autonomy.
- CEI 0-16 compliant for medium-voltage substation requirements.
- USB & RS232 ports as standard; slot for SNMP, RS485, or Relay cards.
- Integrated EPO (Emergency Power Off) and ROO (Remote On/Off) features.
- LED Indicators: Line Mode, Inverter, Bypass, Battery Mode, Low Battery, Overload, Fault

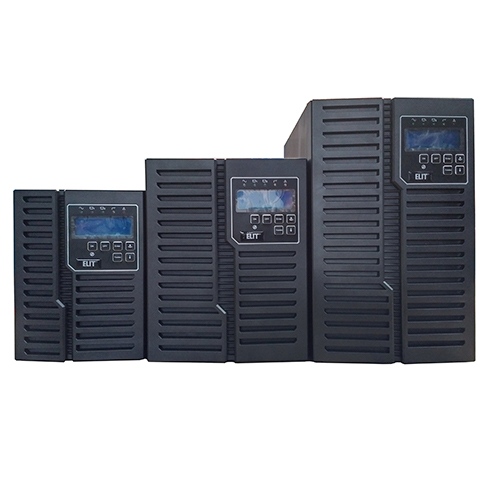

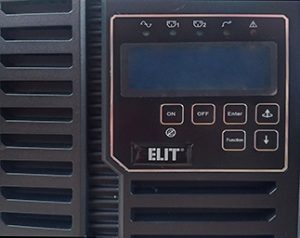

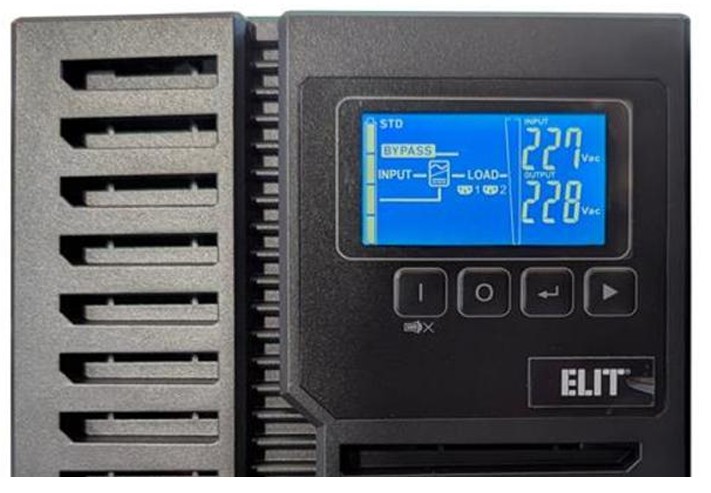

Alarm. - Backlit LCD Display: Graphical interface providing real-time data for Input/Output Voltage and Frequency, Load Level, Battery Status, Output Current, Estimated Runtime, and Internal Temperature.
- Keypad: Multi-function buttons for ON/OFF control, Alarm Mute, Manual Battery Test, and Menu Navigation (Select)
- ECO Mode: High-efficiency operation (up to 98%) to minimize operational costs and environmental impact.
- Frequency Converter Mode: Configurable output frequency (50Hz or 60Hz) regardless of the input frequency.
- Programmable Outlets (Energy Share): Intelligent load shedding of non-critical devices to maximize backup time for mission critical loads.
- Auto Restart: Programmable automatic restart upon mains return, even after a full battery discharge cycle.
- Substation Ready: Advanced firmware features for Medium-Voltage (MV) substations and PLC control cabinets (CEI 0 16 compliant).
- Standard Equipment: Each unit features integrated RS232 and USB ports for comprehensive local management.
- Professional supervision software is provided complimentary upon request, enabling real time parameter tracking and automated system shutdown.

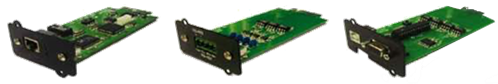

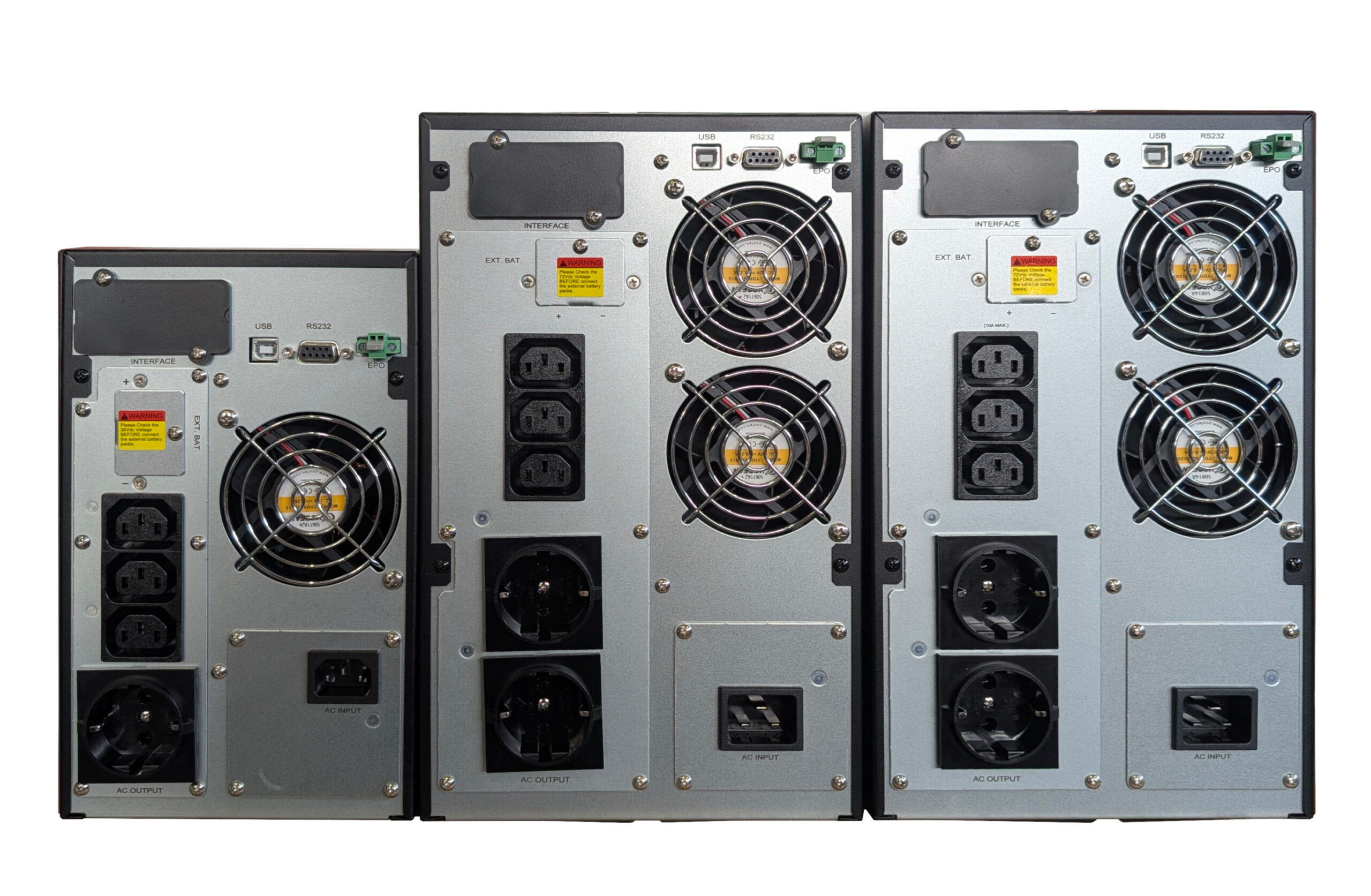

- Expansion Slot: In addition to standard ports, the system supports optional network interfaces:
- SNMP Card: For advanced web-based management and multi-client network integration.
- RS485 Interface: For Modbus protocolcompatibility.
- Relay Card: Dry contact interface for remotealarm signaling
- External Battery Modules: Standardized cabinets designed for scalable runtime requirements (up to several hours). These modules include independent internal chargers to ensure fast, safe, and efficient battery recovery.
- Maintenance Bypass (MTBS): A “Plug & Play” external manual bypass switch. It allows for UPS maintenance or replacement without interrupting power to critical loads, while providing integrated output distribution.
