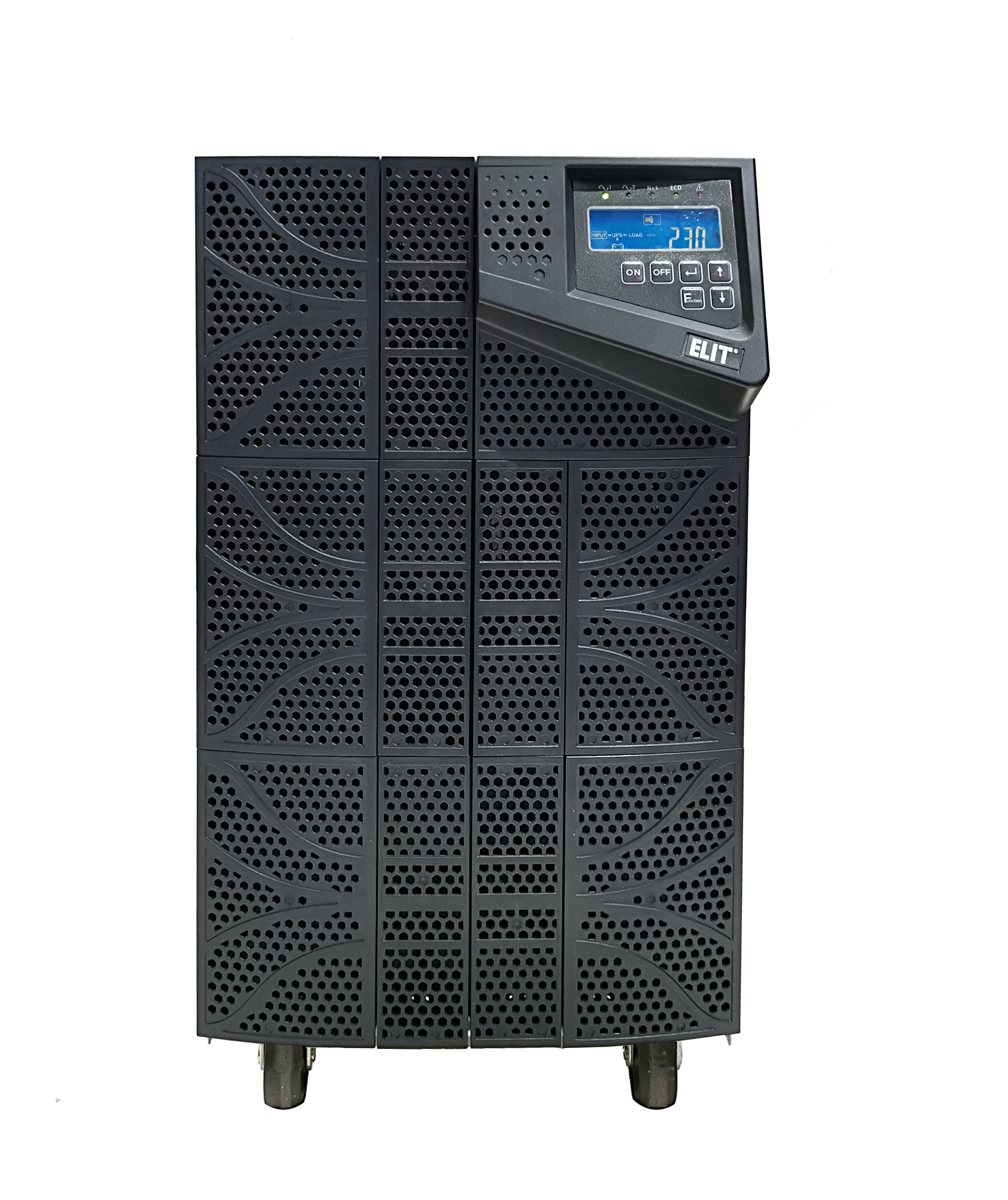

SINGLE PHASE ONLINE DOUBLE CONVERSION SINEWAVE UPS 6000VA – 10000VA, NS LCD PF1 SERIES

The NS pf1 double conversion series with DSP technology, Digital Signal Processor, is the perfect solution for supplying sensitive mission critical utilities that require reliability and performance from an uninterruptible power supply. Input power factor correction, high efficiency and parallel redundant capability (N+X) provide a higher level of Power Quality for all sensitive electronic and safety devices such as electromedical.

Description

The backup series is composed by: Rectifier, Inverter, Static Switch, manual by-pass and Battery.
The Rectifier-Inverter line normally feeds the users, and the Battery is kept charged by the Rectifier.
If a black out occurs, the Battery supplies power energy to users always through the Inverter. When the blackout is over, the Rectifier provides for Battery charge.
If a short circuit or an overload occurs to the users, the Static By-pass switches the load over the emergency line. When the fault is over, the Inverter feeds users.

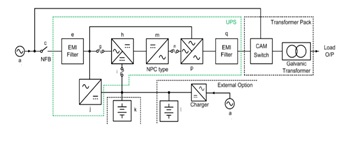

1Ph UPS ON-LINE DOUBLE CONVERSION 6kVA – 10kVA, NS LCD PF1 SERIES - BLOCK DIAGRAM

  • Output power factor equal to 1;
  • Parallelability N + X;
  • Double conversion with DSP technology;
  • Sinusoidal, filtered and stabilized voltage;
  • Input power factor correction, to reduce the harmonic content;
  • Wide tolerance on input voltage without battery intervention;
  • Zero intervention time;
  • Configurable battery voltage;
  • Display of UPS back up time;
  • Automatic and manual battery test;
  • Full discharge battery protection;
  • LCD display measurements and system parameters;
  • ECO Mode functionality;
  • USB interface;
  • Cold start;
  • Emergency Power Off;
  • Remote switch on / off.

Accessories:

  • Ambient temperature and humidity sensors;
  • Separate input emergency line;
  • Isolation transformer;
  • SNMP, RS485, RS232 and dry contacts;
  • External manual bypass;
  • Parallel kit;
  • Additional battery modules;
  • Charge additional batteries up to 20 A.

The front display panel provides all major systems parameters and operational status of the UPS that include full diagnostics for simple, easy servicing. The NS series UPS with DSP control, systematically checks each component and displays the result using on LCD display. This feature allows service technicians the ability to pinpoint and repair the UPS very quickly.

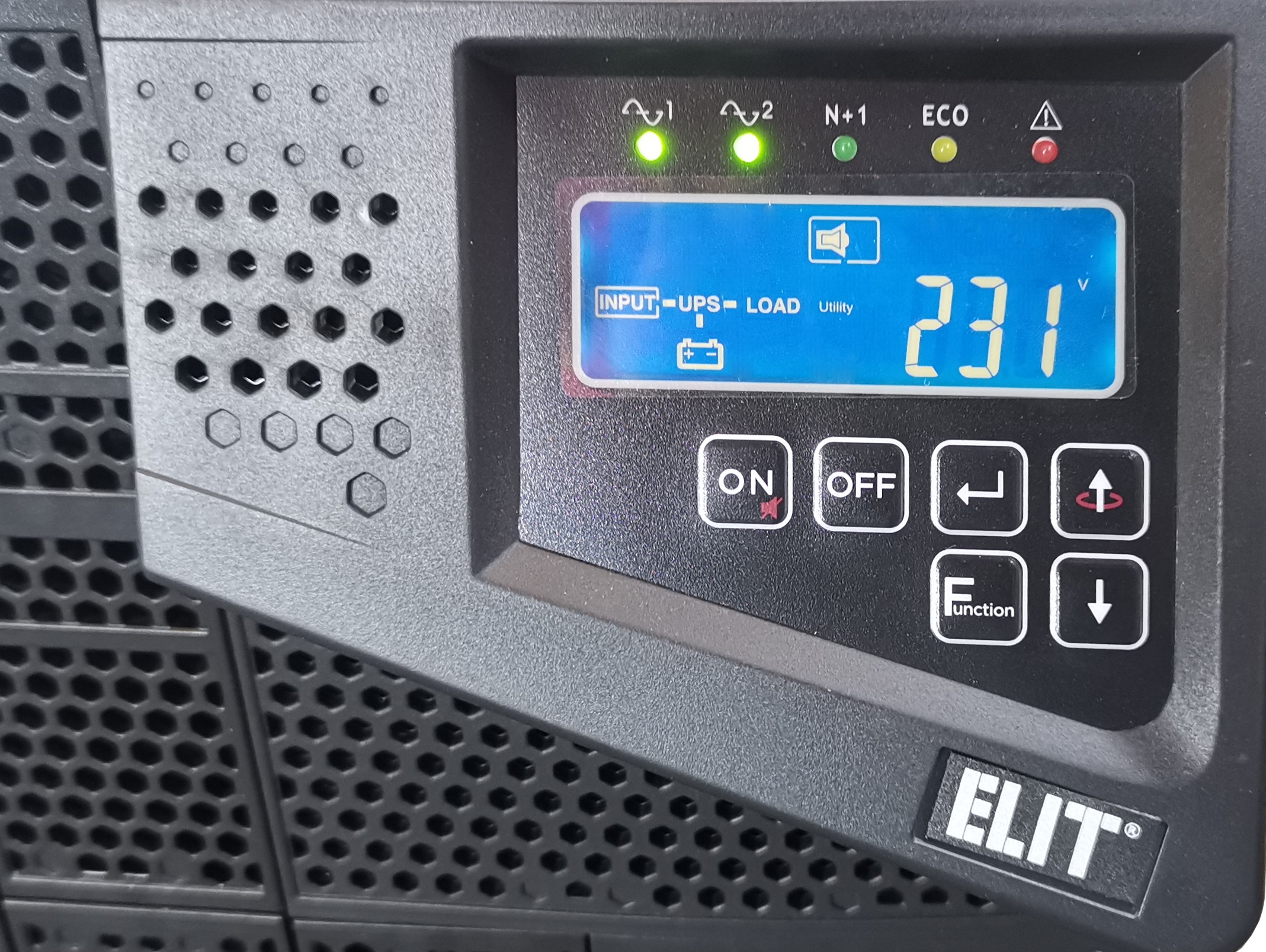

1Ph UPS ON-LINE DOUBLE CONVERSION 6kVA – 10kVA, NS LCD PF1 SERIES - FRONT PANEL

LED indicators:

  • Mains_1 LED
  • Mains_2 LED
  • Redundancy LED
  • ECO Mode LED
  • Common Alarm LED
Control Keypads:

  • ON & Alarm Sil. Key
  • OFF Key
  • Function Key
  • Scroll Keys
  • Enter Key

LCD Display:

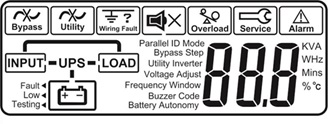

1Ph UPS ON-LINE DOUBLE CONVERSION 6kVA – 10kVA, NS LCD PF1 SERIES - LCD DISPLAY



✓ Status
Line Mode, Back-up Mode, ECO Mode, Bypass Supply, Battery Low Voltage, Battery Bad/Disconnect, Overload, Transferring with Interruption & UPS fault.
✓Parameters
Input voltage, input frequency, emergency line voltage, output voltage, output frequency, output current, load percentage, back up time, battery Voltage and ambient temperature.

The apparatus, for reliability or subsequent needs of greater power available, can be connected to other units of the same power by connecting the UPS control logics with a special parallel accessory kit, even after the first installation.

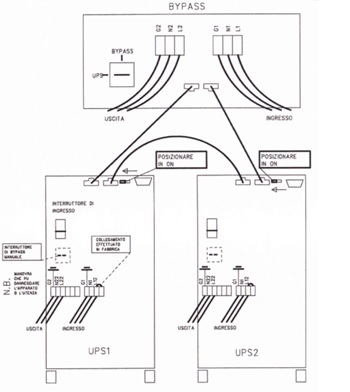

1Ph UPS ON-LINE DOUBLE CONVERSION 6kVA – 10kVA, NS LCD PF1 SERIES - MECHANICAL ASSEMBLY

This feature allows up to no.4 UPS to operate in redundancy (N+1), when the required power is lower than the nominal power of the single group, and in power operation (2N) when exceeds the single UPS rated power due to peaks or greater power necessity. This operating selectivity is automatic and instantaneous. External manual by-pass accessories are available for parallel distribution up to 200A (40kW).

Each NS series UPS is equipped as standard with a USB communication port. This interface can be used with software provided free of charge for all major operating systems.

1Ph UPS ON-LINE DOUBLE CONVERSION 6kVA – 10kVA, NS LCD PF1 SERIES - COMMUNICATION INTERFACES

In addition to the standard equipment, the NS series UPSs can use, as accessories:

  • SNMP network interface with dedicated software;
  • RS485 interface;
  • RS232 interface;
  • Relay Contact Board
    (programmable by software for output relay)
    ;
  • Emergency Power Off (EPO) uses a NO contact which, if closed, starts the shutdown sequence. Also available NC if requested.

– Additional battery cabinets to upgrade the backup time till several hours even after the first installation. On request the add battery cabinet can be provided with an external independent battery charger to guarantee a fast recharge.

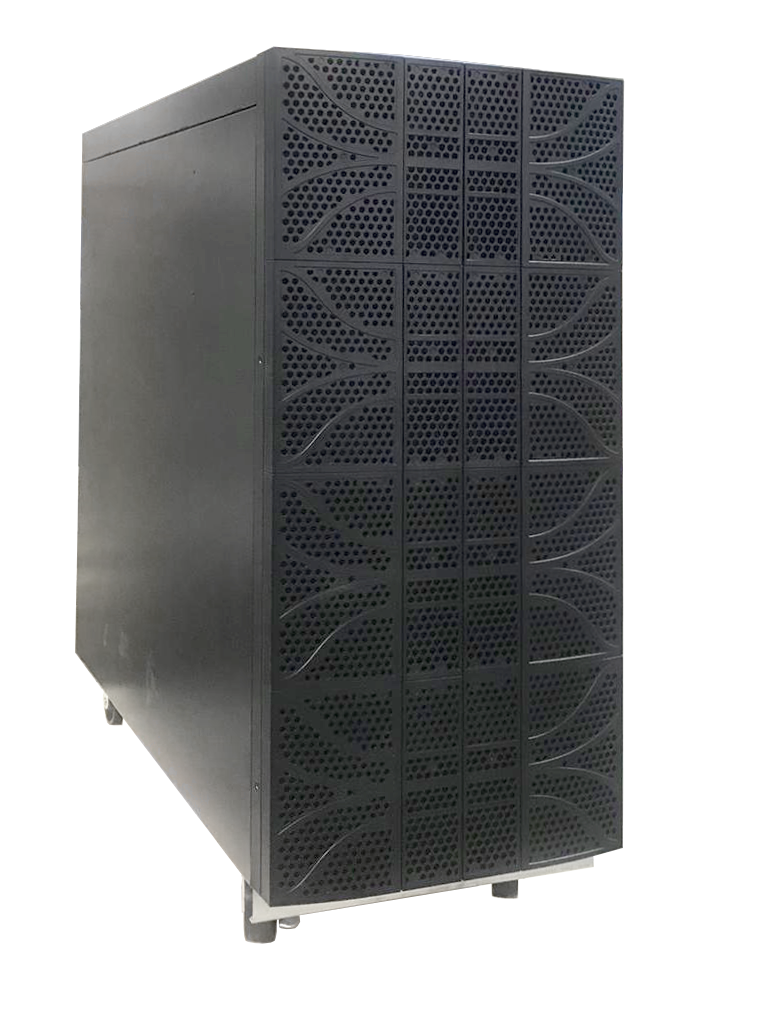

1Ph UPS ON-LINE DOUBLE CONVERSION 6kVA – 10kVA, NS LCD PF1 SERIES - EXTERNAL BATTERY CABINET

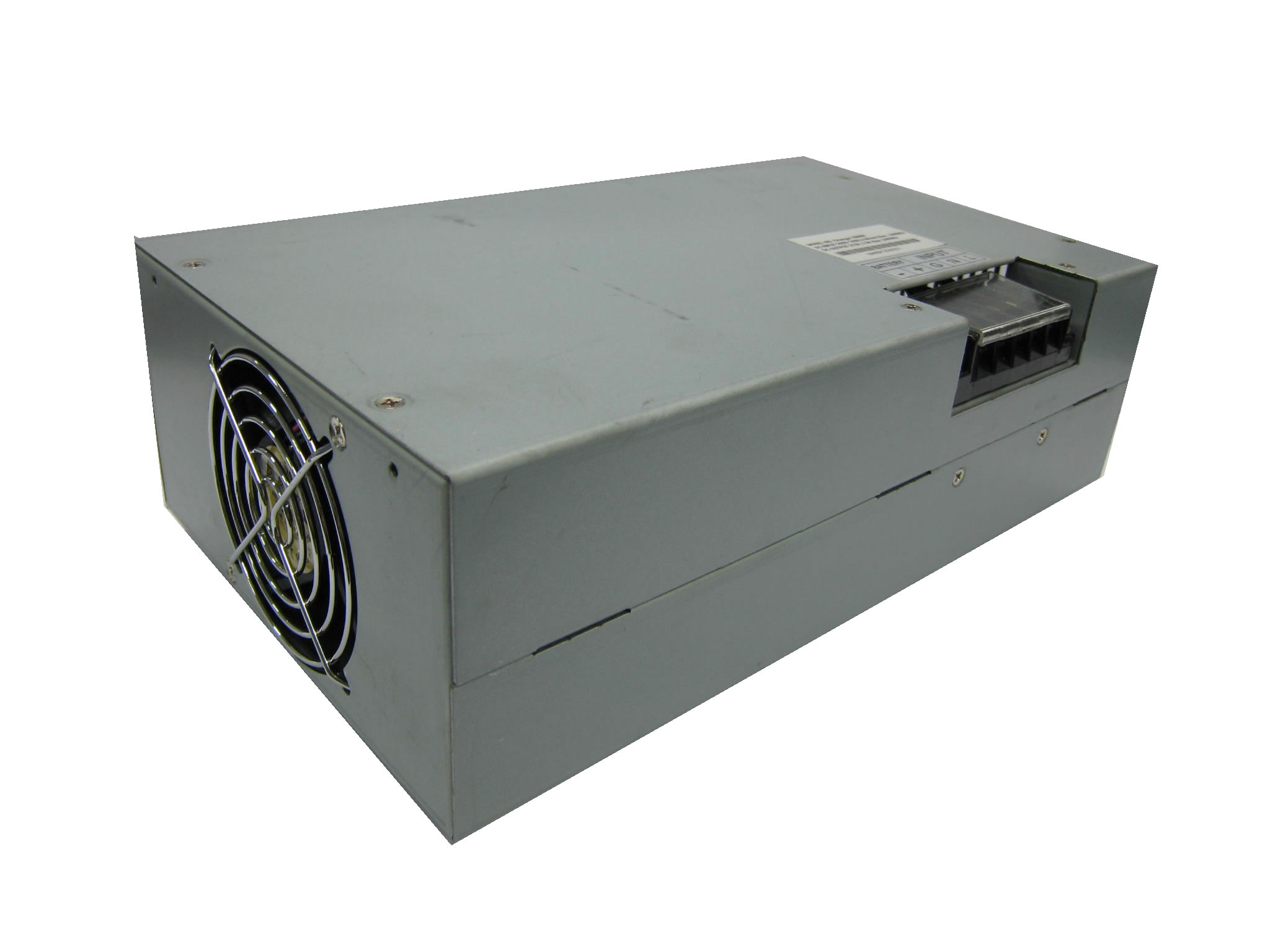

– Modular battery charger up to 20A. Its independent electronic control allows the accessory to work in parallel up to 4 units in continuous operation. It is designed to be connected to the back of the UPS.

1Ph UPS ON-LINE DOUBLE CONVERSION 6kVA – 10kVA, NS LCD PF1 SERIES - EXTERNAL BATTERY CHARGER

– External Bypass Switch Box Series. Beyond to the standard manual by-pass fitted in each UPS, the external maintenance bypass and power output distribution switch allows you to manually transfer the connected equipment to utility power via a maintenance bypass switch and vice versa. It is available till 200 A and it is suitable for single UPS and for a system composed till no. 4 UPS in parallel.

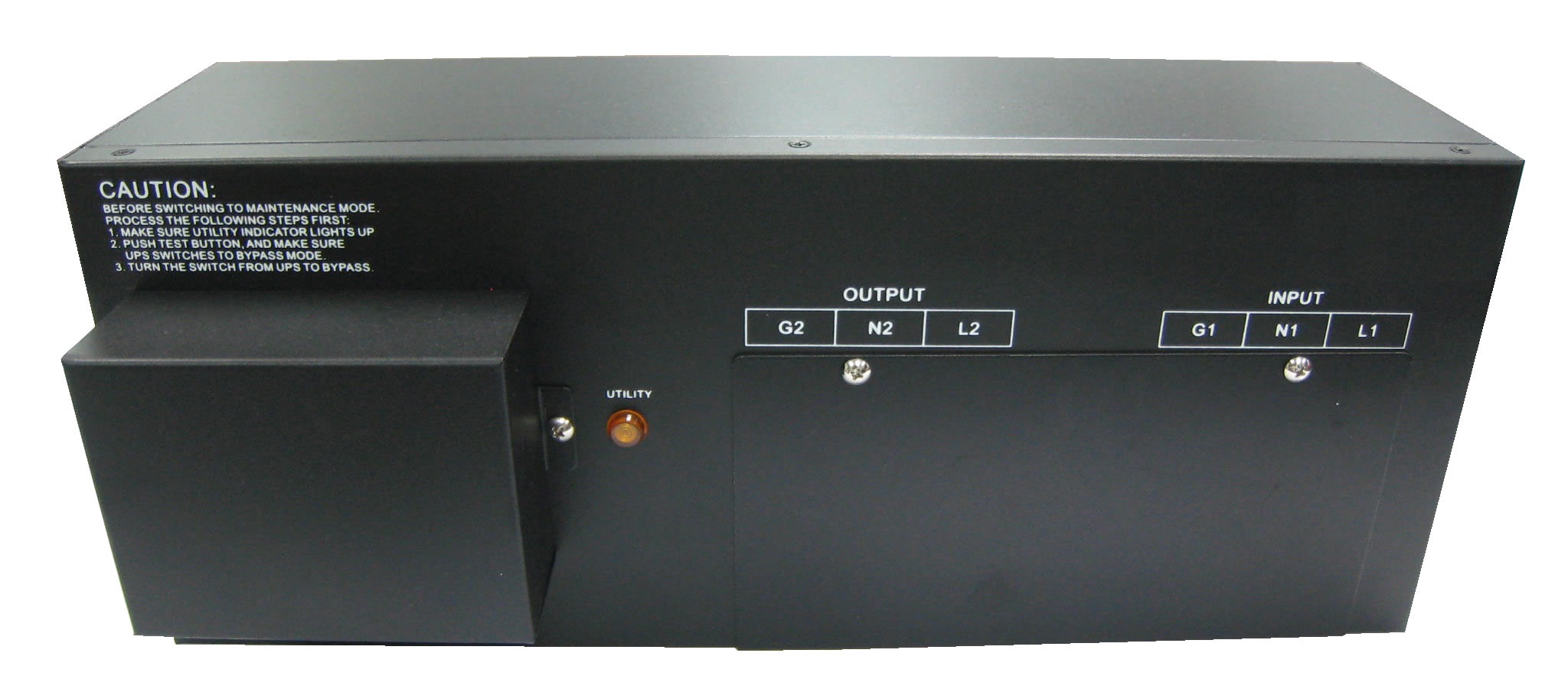

1Ph UPS ON-LINE DOUBLE CONVERSION 6kVA – 10kVA, NS LCD PF1 SERIES - EXTERNAL MANUAL BYPASS

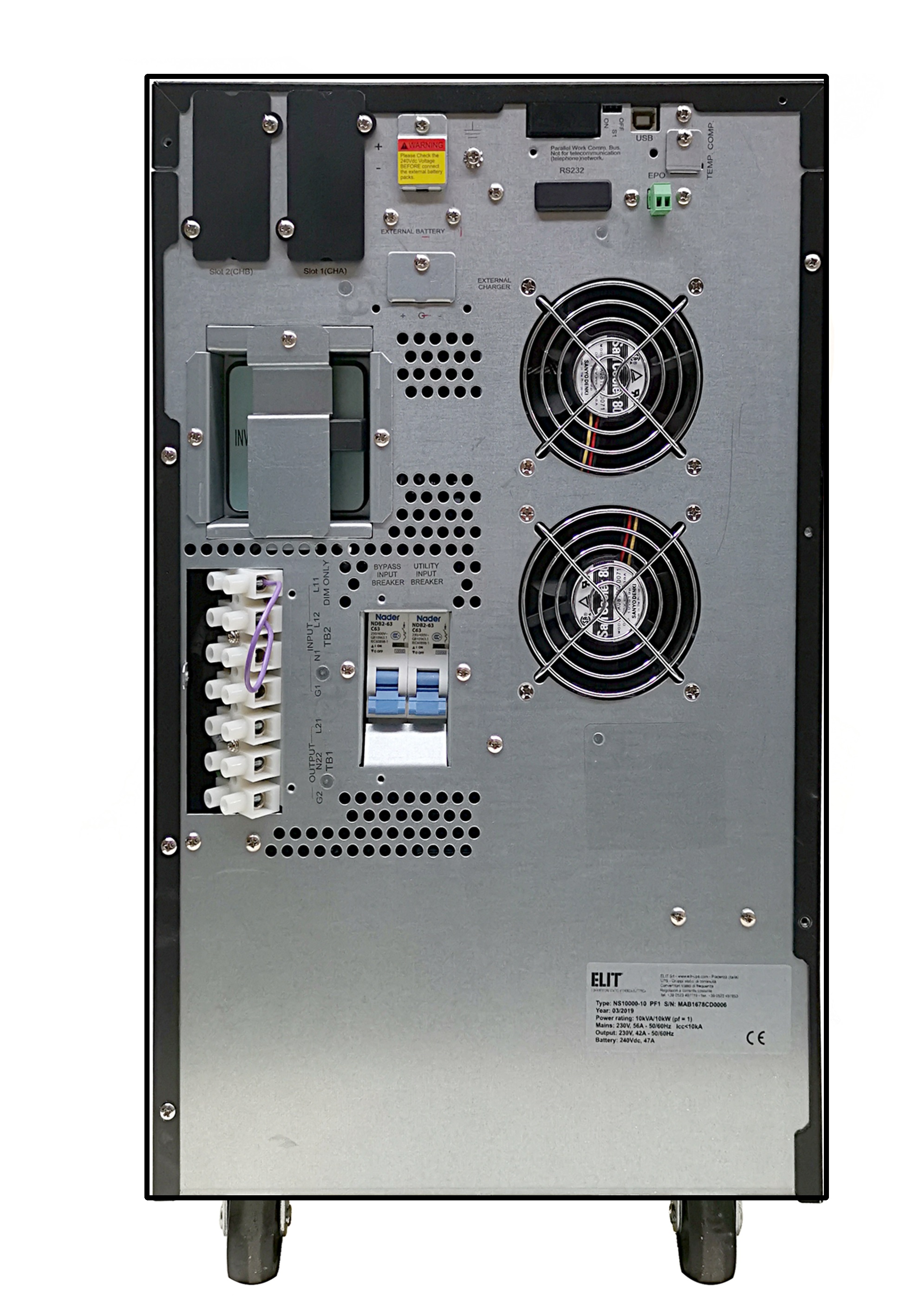

The back of the UPS consists of the following parts, user interface:

  • USB interface;
  • Terminal Resistor for Parallel Function;
  • CAN Bus Connection Port for Parallel System;
  • Customer Options Slot 1;
  • Customer Options Slot 2;
  • Cooling Fan;
  • External Battery Connector;
  • External Charger Connector;
  • Utility Input Breaker CB1;
  • Bypass Input Breaker CB2 (for Dual Input Model Only);
  • CAM Switch (Maintenance Bypass Switch);
  • Input/Output Terminal Block;
  • EPO (Emergency Power Off);
  • Air ventilation grid.

1Ph UPS ON-LINE DOUBLE CONVERSION 6kVA – 10kVA, NS LCD PF1 SERIES - REAR PANEL

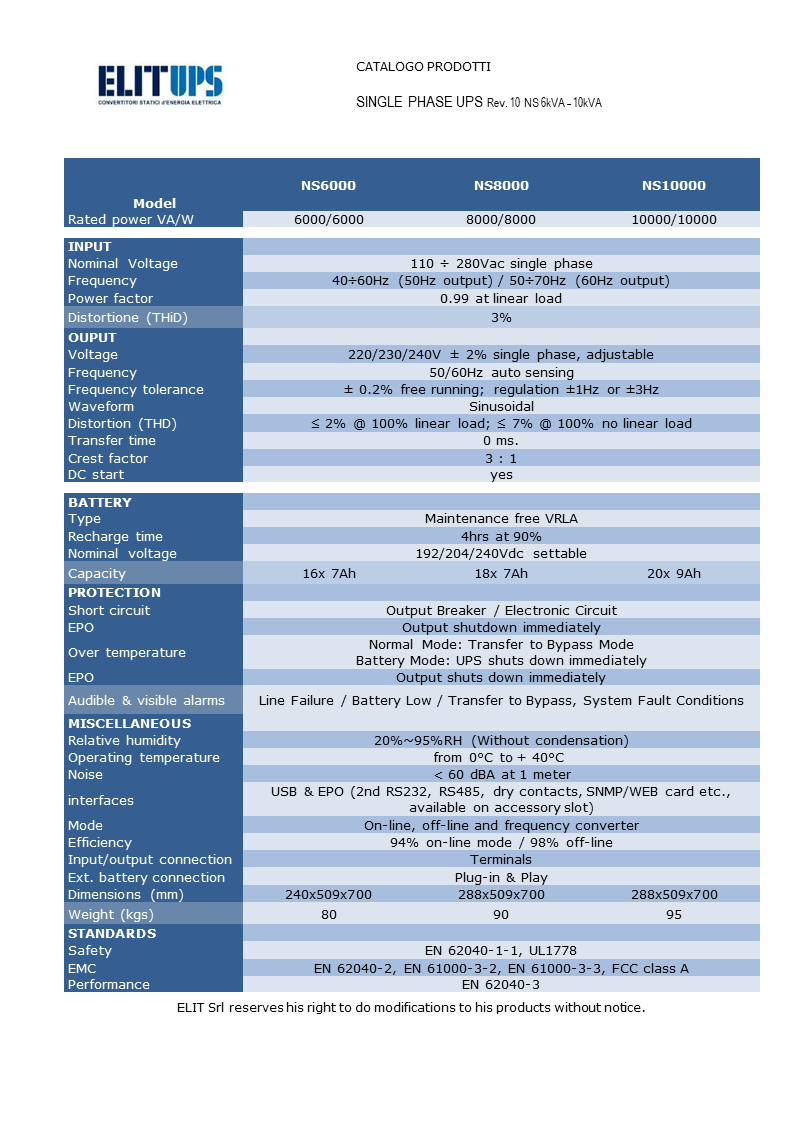

Download the full Thecnical Data Sheet
