THREE PHASE UPS 10 – 250KVA, TPH KING PT SERIES

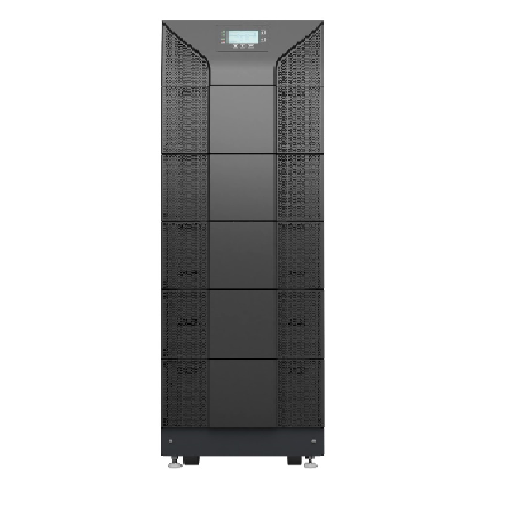

The TPH KING PT PF1 series represents the latest generation of UPS PF1 in three-phase medium power systems without transformer (VFI-SS-111).
TPH KING PT provides the perfect solution for small and medium-sized data centers, communication rooms, IT networks, and any mission critical application that requires high power and energy efficiency.
TPH KING PT has a solution with integrated internal batteries from 10 to 60kW, minimizing the size of use. The flexibility in the number of configurable batteries from 30 to 50 monoblocs allows to optimize costs and back up time.
The high efficiency in ON-LINE mode of 96.6% (VFI) and 99.4% in OFF-LINE mode guarantees maximum energy savings.

Description

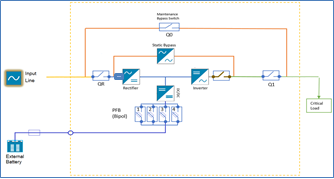

Under normal power supply conditions, the load is fed directly by the Inverter while the rectifier supplies the necessary power to the Inverter and to charge the batteries.
If one of the following conditions occurs on the power supply: mains failure, lack of a phase, voltage out of tolerance, the battery provides the necessary energy to the inverter to supply the load in zero transfer time. Once normal operating conditions are restored, the rectifier charges the battery and at the same time feeds the load through the inverter.
If one of the following conditions occurs:
overload, Inverter input or output voltage out of tolerance, Inverter failure, overtemperature, the load is automatically transferred, zero transfer time, to the emergency line. When normal operating conditions are restored, the load is automatically transferred back to the Inverter.

  • Input power factor 0.99
  • Output power factor PF1, kVA = kW
  • Harmonic distortion THiD input ≤ 3%
  • Efficiency 96.6% VFI
  • Zero transfer time
  • Sinusoidal voltage, filtered & stabilized
  • Parallelable up to 30 units (7.5MW)
  • Footprint <0.35m2 up to 60kW
  • High short circuit capacity (3 x In)
  • Continuous overload up to 120%
  • Flexible battery configuration
  • Full discharge battery protection
  • ONLINE / OFFLINE operating mode
  • RS232, basic dry contact port and bluetooth

Opzionali

  • 7 inches graphical touchscreen display
  • Interfaccia SNMP, RS485, additional dry contact port
  • Insulation transformer
  • Triple independent mode parallel bus
  • Synchro kit
  • Parallel kit
  • Back feed protection
  • Dual input feed (opt on 10-60kW / std on 80-250 kW)

The UPS is equipped with a 3 “LCD graphic display, four LED indicators and a dial with five buttons.

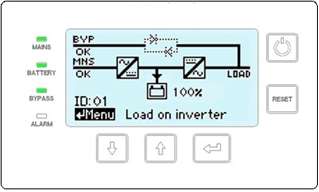

ELITUPS-TPH-KING-PT-10-250kVA-LCD-DISPLAY

The four LED indicators, mains, battery, bypass and alarm offer a quick and simple view of the UPS operating status. Each LED can have two states, ON or OFF. The display of the 3 “module shows the operating mode of the system.
Furthermore, it allows the display of a series of parameters, commands and configurations of the specific module, electrical measurements, UPS status, event log, configurations and service.

The TPH KING PT series UPS is equipped with a standard interface, PC0310, and 2 slots for SNMP and additional dry contacts port.

ELITUPS TPH KING PT 10-250kVA INTERFACE

The UPS is standard equipped with following input ports:

  1. Slot for SNMP adapter
  2. Slot for optional I/O connectivity board
  3. Bluetooth (mobile iOS/Android)
  4. 1x dry output contact, general alarm
  5. 3x input ports: monitoring of external manual bypass, remote shutdown and battery temperature sensor PT100
  6. 1x RS232 serial communication

Optional:
Multidrop connections
SNMP/Modbus adaptor
I/O Dry port relay board (5 dry output contacts, 4 dry input contacts) – PC0311
Battery temperature sensor
Ambient temperature sensor
Humidity sensor

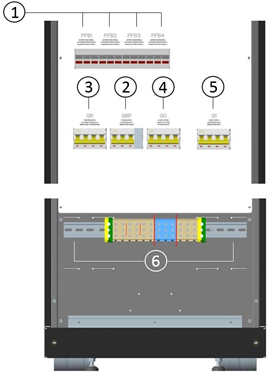

ELITUPS-TPH-KING-PT-10-250kVA-I/O

  1. Battery fuses
  2. Bypass switch (if provided with dual input feed option)
  3. Input switch
  4. Manual bypass switch
  5. Output switch
  6. Connections and wiring

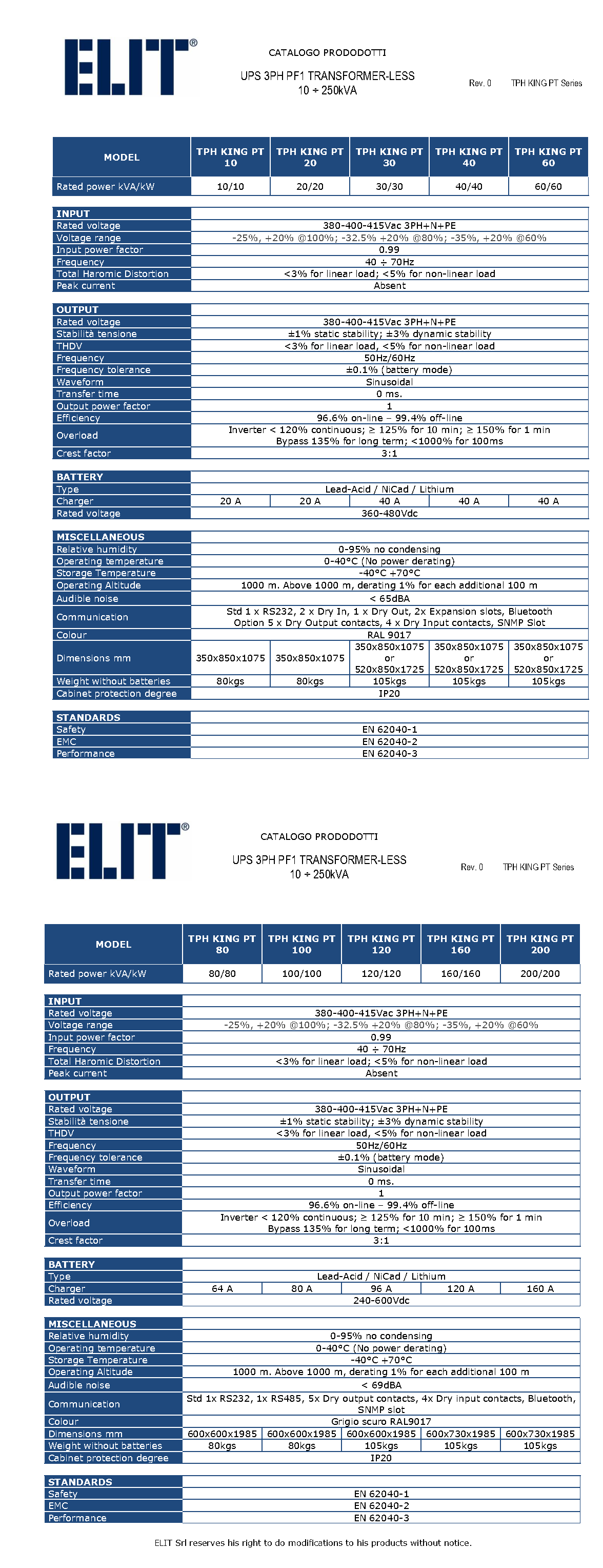

Download the full Technical Data Sheet
