Static Frequency Converter 400Hz 1-3kVA MMFC400

ELIT Srl designs and manufactures 400Hz static frequency converters since 1987. To complete the airfield range of products are available 28Vdc and 270Vdc power supplies, constant current regulating units (CCR) for ground lighting and control systems for commercial and military airports. All the equipment is distinguished by the use of technologically advanced components, reliability, and ease of maintenance.

Description

This rugged, AC/AC frequency converter system uses field proven, microprocessor controlled high frequency PWM technology to generate the required output power with pure sine wave output voltage.

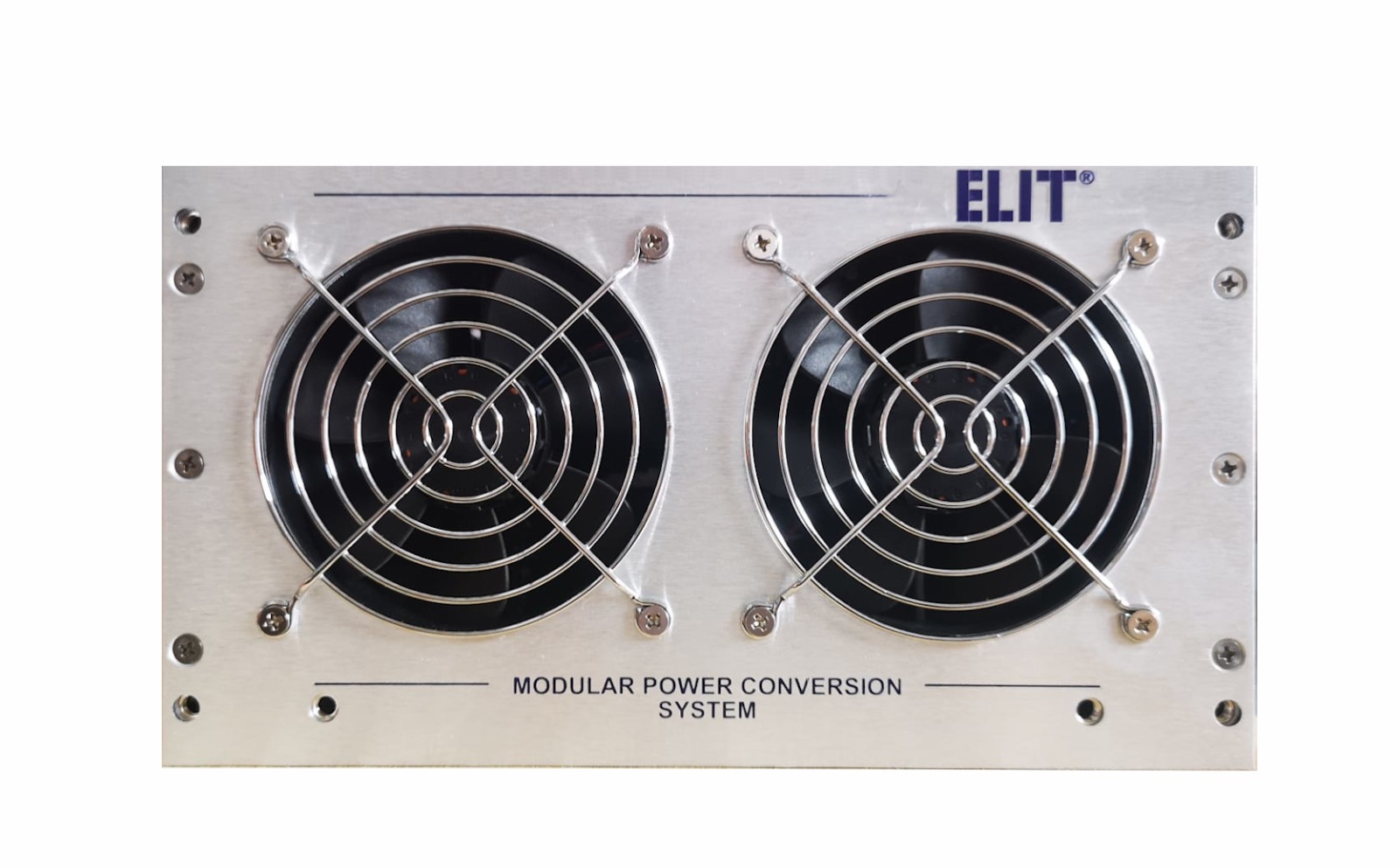

The built-in fans provide sufficient airflow for operation without de-rating within the specified temperature range.

The high frequency conversion enables a compact construction, low weight and high efficiency. The unit has full electronic protection. The input and output are filtered for low noise. The use of components with established reliability results in high MTBF (110.000 hours @ 45°C).

  • Inputs: universal (95-264Vac), 115Vac, 230Vac or custom;
  • PFC available on certain AC-input designs;
  • Outputs: 115Vac or 230Vac (1-Phase);
    208V, 380V or 400V (3-Phase);
  • Custom outputs available;
  • Single or three-phase designs;
  • EMI filtering to meet any standard;
  • Wide operating temperature ranges available;
  • Full electronic protection;
  • Remote shut down on certain units;
  • Adjustment for output voltage and frequency;
  • RoHS compliance.
  • MODULAR SYSTEM – MS
    Light indicators: None
    Control Input: ON/OFF
    switch
    Alarm Output: Not installed;
  • RACK SYSTEM – RS
    Light indicators: Line ON, Output ready
    Output measurements: V, A, Hz
    Control Input: switch isolator
    Control Output: switch isolator.

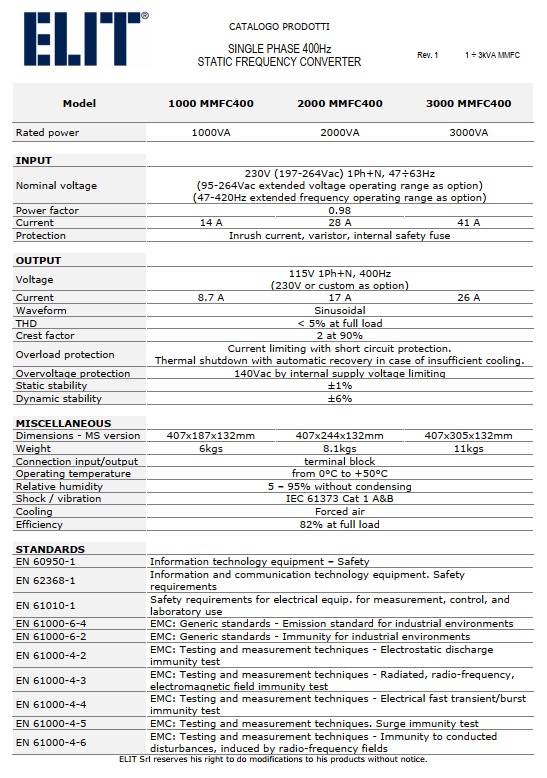

Download the full Technical Data Sheet
